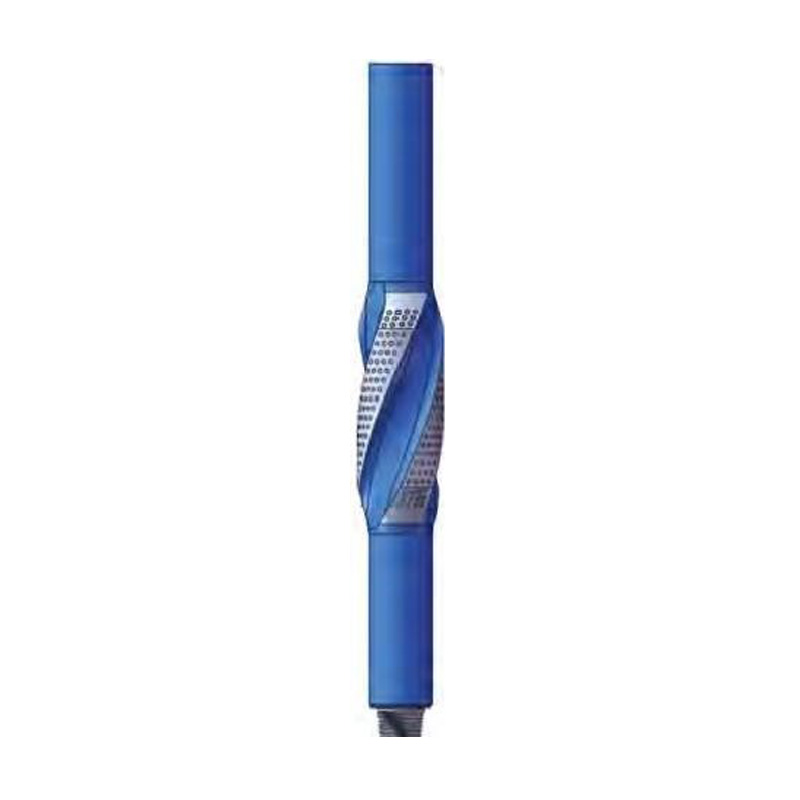

Integral blade stabilizer is an important tool in the drilling process to control the well deviation.It can stabilize the drilling tools in the drilling process of oil,gas and geological exploration.It can increase the bit service life,drilling speed and well quality.There are two kinds of integral stabilizers:spiral blade stabilizer and straight blade stabilizer
| Model | Blade OD | ID | Body OD | Blade Width | Blade Length | Connection | Remark | ||
| Upper End | Lower End | ||||||||
| mm(inch) | mm(inch) | mm(inch) | mm(inch) | mm (inch) | |||||
| LX98 | 98(3-7/8) | 31.8(1-1/4) | 79.4(3-1/8) | 34(1-11/32) | 240(9-29/64) | NC23 | NC23 | String | |
| LX149 | 149.2(5-7/8) | 50.8(2) | 120.7(4-3/4) | 50.8(2) | 305(12) | NC38 | NC38 | String | |
| LX149NB | 3-1/2REG | Near Bit | |||||||
| LX152 | 152.4(6) | 50.8(2) | 120.7(4-3/4) | 50.8(2) | 305(12) | NC38 | NC38 | String | |
| LX152NB | 3-1/2REG | Near Bit | |||||||
| LX216 | 215.9(8-1/2) | 57.2(2-1/4) | 165(6-1/2) | 63.5(2-1/2) | 406(16) | NC50 | NC50 | String | |
| LX216NB | 41/2REG | Near Bit | |||||||
| LX311 | 311.15(12-1/4) | 71.4(2-13/16) | 203(8) | 76.2(3) | 406(16) | 6-5/8REG | 6-5/8REG | String | |
| LX311NB | Near Bit | ||||||||
| LX444 | 444.5(17-1/2) | 76.2(3) | 241.3(9-1/2) | 101.6(4) | 508(20) | 7-5/8REG | 7-5/8REG | String | |
| LX444NB | Near Bit | ||||||||
| LX558 | 558.8(22) | 76.2(3) | 241.3(9-1/2) | 101.6(4) | 508(20) | 7-5/8REG | 7-5/8REG | String | |
| LX558NB | Near Bit | ||||||||
| LX660 | 660.4(26) | 76.2(3) | 241.3(9-1/2) | 101.6(4) | 508(20) | 7-5/8REG | 7-5/8REG | String | |
| LX660NB | Near Bit | ||||||||
| LX711 | 711.2(28) | 76.2(3) | 241.3(9-1/2) | 101.6(4) | 508(20) | 7-5/8REG | 7-5/8REG | String | |
| LX71INB | Near Bit | ||||||||
| LX914 | 914.4(36) | 76.2(3) | 241.3(9-1/2) | 101.6(4) | 508(20) | 7-5/8REG | 7-5/8REG | String | |
| LX914NB | Near Bit | ||||||||
